A Longitude Timekeeper by
Isaac Thuret
with the Balance Spring invented by
Christiaan Huygens.
Reinier Plomp
The Netherlands
Contents
1.
Introduction
2. The early contacts between Christiaan Huygens and Isaac Thuret
3. Huygens and Thuret in the controversy of the balance-spring construction
4. The significance of the new invention for marine timekeepers
5. Description of the clock
6. Who ordered this clock?
7. The clock's significance in the light of the later development
8. Notes
Figure

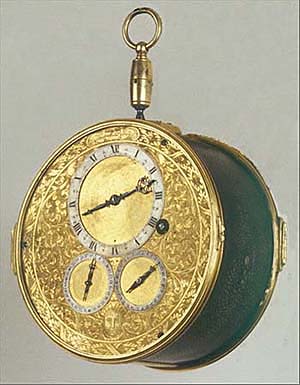

1. The recently discovered longitude timekeeper by Isaac Thuret, signed Thuret A Paris, 1675-1680.
Summary
The recent discovery of an extremely interesting clock signed Thuret A
Paris reveals that this clockmaker was much more closely involved in the
development of a clock to be used for finding longitudes at sea than has
generally been assumed. Isaac Thuret was the clockmaker who made for Christiaan
Huygens the first watch with a spiral spring regulating the movements of the
balance wheel in 1675.
The conflict about his contribution to the invention is
usually seen as to have ended their cooperation. However, a closer study of
Huygens' correspondence strongly suggests that this was not the case.
This longitude timekeeper, provided with the pirouette as published by Huygens
but abandoned by the makers of pocket watches, supports this view. Its close
correspondence in design with the later marine chronometers (no remontoire
neither fusee) confirms that Huygens and Thuret, apart from the pirouette, were
on the right track. However, it would take a century before the
reliability and accuracy of the mechanic timekeeper reached the level
required for measuring longitudes.
Type
' Ctr+F ' to find any word or number on this page
1.
Introduction
The recent discovery of an extremely interesting clock signed Thuret A
Paris reveals that this clockmaker was much more closely involved in the
development of a clock to be used for the measurement of longitudes at sea than
has generally been assumed. Isaac Thuret (about 1630-1706) was the most
distinguished Paris clockmaker of the second half of the 17th century, Horloger
Ordinaire du Roi and clockmaker of the Académie Royale des Sciences
and its observatory. He made the first watch with a spiral spring attached to
the balance wheel invented by Christiaan Huygens in 1675, to be considered as
the most important step forward in the development of accurate mechanic watches.
However, it was not known that Thuret ever had used this
invention to construct a timekeeper specially designed for finding longitude at
sea, a true precursor of the marine chronometers developed in the 18th century.
The clock illustrated in Figure 1 shows that he actually made such a clock.
Restudying Christaan Huygens' Œuvres Complètes in the light of this
discovery showed that his invention of the spiral balance spring was much more
aimed at the problem of measuring longitude than is usually realised. The
significance of Thuret's clock can only be understood fully against the
background of his close relation and cooperation with Huygens. Therefore, I will
deal with this relation prior to giving a description of the clock.
2.
The early contacts between Christiaan Huygens and Isaac Thuret
The earliest reference to Thuret in the preserved correspondence of Huygens
is in 1662. Apparently, Christiaan Huygens had not met Thuret during his second
visit to Paris in 1660-61. Shortly after his return in May, 1661, his father
Constantijn Huygens1 was sent to Paris to negotiate the restitution
of the principality of Orange to the ten-year old Prince Willem, the later
stadholder of The Netherlands and King William III of England, Scotland, and
Ireland with his wife Queen Mary. A letter from Christiaan in The Hague to his
brother Lodewijk, who accompanied his father to Paris, strongly suggests that
Constantijn had brought with him a pendulum clock as a present to King Louis
XIV.2 We know that the successful application of the pendulum as a
clock regulator by Huygens in 1656-7 had been highly enthousiastically received
in Paris and that several clocks made in The Hague had already found their way
to that city.3 So, it is perfectly understandable that the proud
father presented one to the French king.
In these contacts with the court, Constantijn Huygens may
have met Isaac Thuret. This clockmaker was born in Senli and, as many of his
colleagues, a Protestant from origin. As Augarde has recently explained, Thuret
had close relations with eminent court artists; his daughter Suzanne married
Charles-François de Sylvestre, Maître de dessin des Enfants de France,
and his son Jacques, who succeeded him as Horloger du Roi, married
Louise, daughter of Jean Bérain, Dessinateur des Menus-Plaisirs du Roi.4
Constantijn Huygens saw clocks made by Isaac Thuret and was greatly impressed.
We know this from another letter to Lodewijk, dated 12 April 1662.5
In this letter Christaan asks his brother to describe how the clocks of Thuret
are made. His father had written to prefer Thuret's clocks strongly above his
own; if Christiaan could know the 'form', it could be used to instruct the
clockmakers in The Hague. Unfortunately, Lodewijk's reply is not preserved, so
we do not know in which respects Thuret's clocks were considered to be better
than the clocks made by Salomon Coster and his successors (Visbach, Oosterwijck,
Pascal, van
Ceulen).6
The next references to Thuret are in letters sent by
Christiaan during his fourth visit to Paris in 1663-4. In a letter dated 18
January 1664, he complains to Lodewijk about a clock by the Hague clockmaker
Claude Pascal ordered from Paris through Christiaan.7 The owner is
very dissatisfied because the clock goes so badly that Christiaan is inclined to
return it to the maker. We learn from subsequent letters that the clock has been
taken back by Christiaan and brought to Isaac Thuret for repair.8
Just after having sent the last letter, three more clocks made by Pascal
arrived. Immediately, Christiaan informs Lodewijk about how badly they were
damaged during the journey.9 He is very angry about this and assures
his brother that he will never mediate again in ordering Dutch pendulum clocks.
Again, Thuret is mentioned as the clockmaker in charge of the repairs.10
From these letters we know that the first personal contacts
between Christiaan Huygens and Isaac Thuret resulted in a close cooperation in
the care of early pendulum clocks sent from The Hague. Although we have no
direct letters to Thuret, he is mentioned again and again in Huygens'
correspondence in the period between the latter's return to Holland in June,
1664, and his move to Paris two years later. Pierre Petit11 gives an
obscure description of some construction by Thuret.12 A later letter
reveals that Thuret had designed a remontoire13 to increase the
accuracy of a timekeeper, which illustrates the inventiveness of this maker.14
Huygens played down this achievement, obviously because he himself was involved
in a similar endeavour.
Huygens had developed his remontoire for a more precise
version of his pendulum clock to be used for measuring longitude at sea. This
had been one of his main aims from the beginning.15 Thanks to the
mediation of his father, again in Paris, Christiaan Huygens obtained early 1665
from Louis XIV a French patent for his new remontoire clock.16
According to a notarial act drawn up in The Hague, Huygens authorized Jean
Chapelain17 to dispose of the patent as his representative. Chapelain
writes to him on 13 March 1665, that
......that
excellent clockmaker Monsieur Thuret, of whom you yourself have said me much
good, visited me yesterday and asked me to offer you his service for the
construction of clocks to be used on ships and for their sale and
distribution.18
Within two weeks, Christiaan Huygens agreed.19 We
do not need to follow the negotiations about the financial arrangement, and may
confine ourselves to Chapelain's view that Huygens will be served by Thuret
'incomparably better and with more capacity [. . .] and intelligence than by any
other'.20
In the next few months, two clocks with a remontoire ('after
your new invention') made in The Hague arrived safely in Paris.21 In
agreement with Huygens' instruction, Thuret was called upon to install the
clocks. As Chapelain wrote to Huygens, Thuret had noticed that Huygens' 'secret'
was quite similar to his own but that
the little
chains in your construction testify of a less simple skill than in his own and
more subjected to arrest as has happened with the one of Monsieur Carcavi and
the one of Monsieur de Montmor.22
In June 1666, Christaan Huygens moved to Paris to become the
most distinct founder member of the Académie Royale des Sciences.23
This move can explain why the name of Isaac Thuret is not mentioned in the
correspondence of the next eight years. The only exception is in a letter by
Christiaan to his brother Lodewijk, dated 6 January 1668, in which he mentions
to have heard from Thuret that the Dutch admiral Michiel de Ruyter had a
pendulum clock with him on his expedition to Guinee and Terra Nova in 1665.24
This does not mean, however, that Huygens and Thuret did not
meet each other frequently during these years. We have, on the contrary, clear
evidence that they did indeed. Huygens had brought with him from The Hague two
clocks with remontoires to be tested at sea.25 These remontoires
appeared to cause great difficulties in practice, as Thuret had already noticed.
Huygens was obliged to order new clocks without this feature, which where at sea
in March, 1669, as he writes to Robert Moray in London.26 This letter
also tells that, as a substitute of the remontoires, Huygens had perfected the
clocks by other means. We may assume that Thuret was intensively involved in
this development. We can conclude from another letter that the clocks were
provided with one-second pendulums.27 From Richer's report of the
observations during the journey to America in 1672-3, we know that these clocks,
one marking seconds, the other half-seconds, were made by Thuret,
who by his exactness and
the delicacy of his works has surpassed up to now everyone involved in the
production of watches and pendulum clocks.28
For this expedition, Huygens even had proposed a new pendulum
construction less susceptible to ship movements but, due to his illness, this
clock was not ready in time.29
At the same time, Huygens was equally strongly involved in
improving clocks to be used in astronomy. In 1673 he published his major book Horologium
Oscillatorium with a drawing of a clock evidently designed for astronomical
purposes.30 It is clear that, again, Thuret had constructed this
clock. The Museum Boerhaave in Leiden has a clock signed THURET A PARIS, with a
one-second pendulum, almost exactly corresponding to the drawing.31
This is most probably Huygens' own clock brought from Paris when he returned.
Two other clocks after the same design are known: one also signed by Thuret in a
private collection in The Netherlands and one in the Ole Rømer Museum in
Taastrup, Denmark, provided with the coat of arms of this astronomer.32
In his dedication of the Horologium Oscillatorium to Louis XIV, Huygens
remarks that many clocks made after his invention are found in the king's
private rooms in the palace as well as in the recently founded Observatory.
Without doubt, these clocks were made by Thuret. His name is mentioned in
account books from 1669 onwards for works made for the Académie Royale des
Sciences and, three years later, also for the maintenance of all pendulum
clocks of the observatory and the academy.33
Returning to the marine clocks, it is significant that
Huygens discovered, additional to the very difficult problem of keeping a
pendulum clock going at sea with the required accuracy, a quite unexpected other
drawback of his construction. The America trip of 1672-3 revealed that the
length of a one-second pendulum is not a universal measure but depends on
latitude.34 Huygens had to face the fact that the pendulum as a
timekeeper at sea had not only practical but also more fundamental
disadvantages.
This knowledge may have prepared his mind to look in quite
another direction for regulating clocks for finding longitude at sea. His
interest in using a spring in combination with the traditional balance,
resulting in the spiral spring universally applied after 1675, should be seen
against this background.
3.
Huygens and Thuret in the controversy of the balance-spring construction
The idea of applying a spring to regulate a clock was not new
for Huygens. As early as 1665 Robert Moray had announced that Robert Hooke35
had lectured for the Royal Society about providing the balance of a clock with a
spring rather than a pendulum in order to avoid the effects of movements both at
sea and on land.36 According to Hooke, there were many different
methods to apply the spring. In his reply, Huygens had mentioned that already
during his visit to Paris in 1660, Artus Gouffier, duke of Roannes, had brought
him to the clockmaker to whom the duke and Blaise Pascal had communicated such
an invention.37 Apparently, Huygens had not been much impressed; he
expected that the ship movements would introduce small irregularities in the
movements of the balance wheel difficult to eliminate and that it was not known
whether temperature changes would effect the vibrations. According to Huygens'
preserved journal of his trip to Paris, the clockmaker visited by Huygens can be
identified as (Giles) Martinot.38 In his next letter to Moray,
Huygens pointed out again the disadvantages of a spring compared with a
pendulum.39

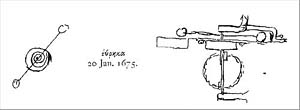

Figure 2.
Earliest sketch by Christiaan Huygens of a clock
balance combined with a spiral spring .
Nevertheless, ten years later Huygens reconsidered the merits
of the spring and, as we know, came to a quite different conclusion. It seems
apparent that this change of mind was initiated by his theoretical demonstration
of the isochronism of string vibrations in 1673-5.40 From the view
that a spring, clamped at one side, vibrates in equal times independent of its
amplitude41 to the spiral spring as a regulator of the oscillations
of a clock balance is only a single, but brilliant, step. In his letters as well
as from his notes we have a very elaborate, be it one-sided, report of this
application that changed the mechanic watch forever. Let us follow his
day-by-day report.42
The notes begin with the first sketch of Huygens' idea of how
to provide the balance of a clock with a spiral spring in order to get a more
accurate timekeeper, dated Sunday, 20 January 1675, see Figure 2. The next day,
Huygens tries two times to find Thuret in order to have his idea converted into
a model, but Thuret is not in his workshop. A third visit on the morning of 22
January is more successful and Huygens communicates his invention confidentially
to Thuret who reacts very enthousiastically. Immediately, Thuret starts making a
model according to Huygens' instruction and, without a lunch break, the model is
finished at about three o'clock in the afternoon. We might expect that this
model was a watch provisionally provided with a spiral spring. Huygens takes
this model with him to his room.
However, Thuret does not stop after Huygens' departure, but
tries out what may have been a slightly different, and improved, application of
the invention on a watch of his own. He is so proud of the result that on the
next day, 23 January, he calls Huygens away from a meeting to show the
construction, asking to keep it secret. Subsequent versions are seen by Huygens
on the next two days.
With the intention to get a patent, Huygens shows his model
on 31 January to Colbert, the important minister to Louis XIV and promotor of
the sciences. On the afternoon of the same day, he visits Thuret and tells him
to have been to Colbert who, indeed, had promised a patent. Thuret expresses his
hope to be considered as a participant in the invention, but Huygens refuses. He
responds that Thuret will profit more from the invention than Huygens himself
and that he alway will testify that Thuret had contributed so much skill to the
execution of the invention. It is understandable that Thuret was not very happy
with this answer. As Thuret was finishing a watch after the new invention to be
presented to the king, he asks Huygens not to make haste in requesting a patent
in which Huygens agrees.
The next day, Huygens hears that, according to some people,
Thuret has told around to have contributed significantly to the invention. In
view of this, he decides to hasten the patent procedure and to remonstrate
Thuret about his pretentions. For various reasons, this meeting does not find
place until 4 February.
The bomb bursts really on 8 February when Huygens discovers,
as his own words read, 'that Thuret had shown my invention to M. Colbert eight
days before me'. Without having told to Huygens, Thuret had gone to Colbert as
early as January 23 with a watch in which the balance was provided with a spiral
spring. The next day, 9 February, in the presence of some witnesses who knew
Huygens' role in the invention, Thuret tries to deny the accusition but, in a
subsequent interview, he has to admit. In the margin of this confession in his
notes, Huygens added to have given the watch to Gaudron in order to get it
finished.
As Huygens also tells in these notes, some mutual
acqaintainces tried to hush up this conflict. Unfortunately, we do not know in
which way Thuret improved the construction proposed by Huygens but, apparently,
others valued the clockmaker's contribution much higher than Huygens did. They
tried to persuade him to acknowledge Thuret's part in the development of the
invention, but Huygens did not yield. Probably the most open and long discussion
of the opponents took place on 25 February. During this conversation, Thuret
told that the watch was nearly finished and that he would present it to Huygens
to dispose of it. Thuret saw this watch as the result of their combined
efforts in the invention but Huygens, although he expressed to be happy to have
the watch, was not prepared to accept it in another way than by paying. This
demonstrates that Huygens annexed the exclusive right for the invention,
considering Thuret just as a very able craftsman who had materialized his idea
but nothing more.43 In the end, and in spite of important advocates
as Madame Colbert and Ch.H. d'Albert de Luynes, duke of Chevreuse and married to
a daughter of Colbert, Thuret had to capitulate. He signed a letter, dated 10
September 1675, drafted by others, in which he plainly admitted to consider the
spiral spring as the exclusive invention by Huygens, but not after having
suggested that the displeasure of Huygens might have had its origin in the fact
that Thuret had recently succesfully made some clocks provided with a pendulum
attached to a straight spring instead of the usual thread.44
It is obvious that Thuret had strong commercial reasons to
give in. On 15 February 1675, Huygens had obtained the exclusive right 'to have
made watches and clocks of a new invention' for a period of twenty years.45
It is of interest to read that the invention consisted of
a spring turned as a spiral which regulates the rotations of a free balance,
larger and heavier than in the usual works; by this, clocks constructed in
little will give very accurate pocket watches and, in larger designs,
everywhere and in particular for finding the longutudes both at sea and on
land.
With his letter referred to above, Thuret's exclusion from
Huygens' general arrangements to make clocks and watches as patented came to an
end.
4.
The significance of the new invention for marine timekeepers
As we just saw, the text of the patent explicitly included
the right to make marine clocks with a balance spring. It is most likely that,
in fact, this had been the major reason for Huygens' efforts to invent a more
precise clock not making use of the pendulum. In his notes discussed above, we
find clear evidence for it. They include drawings with two balances, rotating in
opposite directions in order to minimize the effects of movements. But perhaps
more importantly is the fact that he drew two versions of the construction: in
his notes the escapement is, as usual, directly coupled with the balance wheel
(Figure 2) which became universally accepted in watches, and in his Letter to
the Editor published in the Journal des Sçavants of 25 February 1675,
with an extra wheel between balance and escapement, see Figure 3.46
One may rightly ask why Huygens introduced the wheel between
balance and escapement as it represents an additional source of friction.
Apparently he had the opinion that a lower oscillation frequency, with less
frequent impulses given to the verge, results in a more detached, and therefore
more accurate, escapement. In pendulum clocks he tried to reach this with a long
pendulum and in his new invention by a balance moving rather slowly over a wide
angle. In order to limit the angle over which the verge rotates, this made the
extra gear necessary. Because of the slow large movements of the balance, this
construction became known as the pirouette. However, the piroutte was not
very practical in watches and was soon, perhaps even immediately, superseded by
a faster oscillating balance directly attached to the verge as in Figure 2.
The significance of the presence of two versions in
Huygens' papers is usually overlooked, as if the pirouette represented an
essential part of his new invention. The main attention for this version in the
literature is understandable as this is the one Huygens published in his Letter
in which he refers to pocket watches as well as to clocks for finding longitude,
repeating the description of the patent given above. Without doubt, the latter
application had the priority in his publication and, therefore, the pirouette
version was illustrated because it represented in Huygens' view the most
precise one. This is comparable with what he did in his Horologium (1658)
and Horologium Oscillatorium (1673), both based on weight-driven clocks
with long pendulums aiming at scientific purposes, not on the less
accurate spring-driven clocks with short pendulums much more frequently made by
the clockmakers and sent by Huygens to his acquaintances in Paris.
Just as had been the case with the pendulum, the balance
spring was received most enthousiastically both in the scientific world as well
as by the watchmakers. Oldenburg ordered a watch on behalf of Lord William
Brouncker, the president of the Royal Society in London, and Christiaan Huygens
himself had a precious one made with crystal at both sides so that the movement of the
balance can be seen without the watch to be opened for Prince William of Orange.47

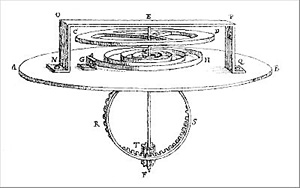

Figure 3.
Drawing of the spring balance construction, known
as the pirouette, published by Christiaan Huygens in his letter in the Journal
des Sçavants of 25 February 1675. The pinion T and the wheel RS represent
the extra gear between the balance and the verge (the latter not drawn).
As lord Brouncker loaned his watch to his royal highness the
duke of York, a special one for the duke was ordered; in this letter, Oldenburg
even increased the London order with an extra half a dozen watches.48
In his reply, Huygens states that now several Paris clockmakers are
constructing, and improving, watches with a spring balance.49
As is well known, Robert Hooke claimed to be inventor of the
idea to provide the balance with a spring. We have seen above that, indeed, he
had presented this idea already ten years before but, apparently, it was not
followed by a working model. Anyhow, Huygens' English correspondents never
questioned his priority and we can be sure that the spiral construction was not
one of the many Hooke had pretended to know.50
It is usually assumed that the conflict ended definitively
the close cooperation with Thuret, 'who had been for a long time one of his
friends', as Huygens had written to Colbert in his letter of protest.51
This conclusion seems to have been based largely on the fact that Thuret's name
is never mentioned again by Huygens after 21 November 1675. However, we should
not neglect what Huygens tells in this letter to Henry Oldenburg.52
About the second watch, destined for the duke of York, he writes:
It is made by Thuret, who makes up to now the best [watches] and with great
demand. He is the one who has treated me so badly after I had confided him
that invention. But, having retracted in the end by a letter which others had
obliged him to write to me, and having come to me to ask pardon, I have no
difficulties anymore to employ him.
Hence, we have every reason to assume that, as Huygens
demonstrated by the watch just mentioned, the cooperation with Thuret continued.
This conclusion is relevant in dealing with Huygens' efforts
to apply his new invention in timekeepers to be used at sea, as was explicitly
mentioned in the patent and in his publication. Already in a letter to Oldenburg
dated 11 July 1675, he admits that, although he considers the new watches
incomparably better than the ordinary ones, their accuracy is less than of
clocks with a pendulum, particularly a long pendulum.53 As is also
clear from other letters, the balance spring construction appeared to be rather
sensitive to movements. Huygens had tried to remedy this by introducing a second
balance rotating in the opposite direction, but this required too much force. He
concludes his comments in the letter to Oldenburg with the announcement of a
more simple solution which he is testing now with perfect success. Probably he
referred to his doubling of the number of revolutions from 120 to 240 per minute
mentioned in a subsequent letter to Oldenburg.54
Huygens' correspondence in the following years does not
mention any effort to apply the spring balance in timekeepers for measuring
longitude at sea. This silence does not necessarily means that he was not
involved. Soon after its invention, he tried out experimentally the effect of
temperature and observed that, after heating the spring considerably, the
vibrations of the balance were not slower than with the cold spring.55
In his Memoire concernant l'Academie Royale des Sciences, written in
1679, we read that
because
the pendulum clocks necessarily suffer from the ship movements, there is more
hope to succeed with balances with a spiral spring, but constructed in a large
size because the accuracy is believed to depend on the dimension ['la justesse
croit a mesure'], and it would be very worthwhile to do this experiment."56
Three years
later, he writes that
after the
tests I have recently made, I venture to promise clocks just as accurate as our
long pendulums by means of my invention of the spiral spring which can easily
resist the largest movements of the sea.57
These quotations may convince that Huygens strongly believed
in the ultimate supremacy of the balance spring over the pendulum for the best
timekeeper at sea.
|
5.
Description of the
clock
As Figure 1 already showed, the recently discovered clock by
Thuret has a brass case in the shape of a cylinder. The diameter of the cylinder
is 16.8 cm and its length 8.3 cm. The front door, provided with glass, and the
turned brass back door are hinged at the left side as usual in French clocks;
both are gilded. The case itself is of rather thin red copper covered with grey
fishskin (ray). The inner side is reinforced with a brass ring to which a pair
of lead plates are attached at the left side as a counterbalance of the heavy
spring barrel positioned at the right.
There can be no doubt that the clock was designed to be used
on board of a ship because the top of the case is provided with an iron ball
enclosed by a brass cylinder for free moving, see Figure 1. This construction
can be recognized as a contribution of Alexander Bruce to the first seagoing
pendulum clocks designed by Christiaan Huygens.58 After the latter's
definitive return to The Netherlands, the device was occasionally used by
clockmakers who worked for Christiaan Huygens for similarly shaped clocks made
for general use on board of ships.
The gilt brass dial plate (diameter 16.0 cm) has three silver
rings: the upper one for the hours, the lower right one for the minutes and the
lower left one for the seconds. The plate is beatifully engraved after the best
French tradition, with a border of acanthus leaves enclosing flower scrolls and
a mask in the area outside the rings. At the top the name of the maker Thuret
A Paris is engraved.

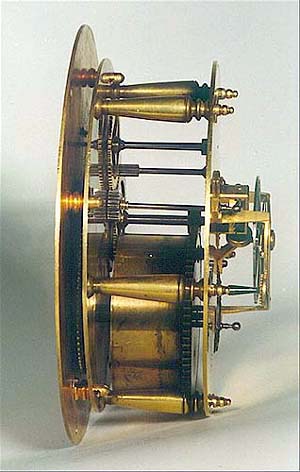

Figure 4. The movement of the Thuret clock.
Figure 4 reveals that the movement is driven by a going
spring barrel. This is a clear indication of the strong influence of Huygens on
the clock's construction. As is well known, Huygens' trust in the accuracy of
the pendulum was so great that he abandoned the fusee traditionally applied in
spring-driven clocks to compensate for the variation in the force of the spring.
In this Huygens was followed by the Dutch as well as the French clockmakers in
their pendulum clocks (but not by the English). Hence, it is understandable that
Thuret's clock is not provided with a fusee. As the many preserved watches with
early balance springs demonstrate, this practice was very soon abandoned by the
watchmakers who, as before, provided their watches with a fusee.
The gearwheel of the going barrel operates the pinion on the
shaft of the minute hand. Through an intermediate gear the seconds hand is
driven to which the crown wheel of the escapement is geared. Figure 4 indicates
that, most unusual, the escapement is not situated between the main plates of
the movement, but behind to the (gilt) back plate as an additional device. This
position might be an indication that the construction was considered to be more
or less experimental, easy to modify if necessary. Figure 5 shows the escapement
in more detail. Between the large (diameter 4.9 cm) and relatively light balance
wheel and the verge is an extra gear, implicating that the balance wheel has to
turn over a relatively large angle of about 150 degrees before the next pallet
is released. This means that, as was Huygens' intention, the balance wheel is
moving rather slowly, with an oscillation period of 1 sec. The movement is going
for three days.

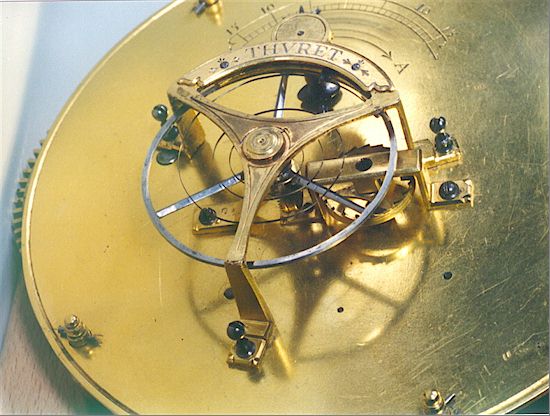

Figure 5.
The escapement of the Thuret clock.
A little plate is screwed to the bridge supporing the balance
shaft with the name of the maker THURET. This plate is significant in
various respects. Firstly, the name is written in capital as in the Thuret clock
for astronomical purposes Huygens brought with him to The Netherlands31
but never seen in his clocks made for general use. Secondly, the position of the
nameplate on the escapement can be interpreted as a demonstration of the close
connection between the maker and the construction. Thirdly, we may wonder
whether the fact that just his name is engraved on a separate plate
rather than directly on the bridge resulted from an initial uncertainty by
Thuret whether and how to sign the movement: in view of his own claims Huygens
invenit, Thuret fecit would not have satisfied his dignity whereas Thuret
invenit & fecit would have raked up the conflict with Huygens. Above the
name plate we see the regulator for adjusting the oscillation period of the
balance.
6.
Who ordered this clock?
The well-considered design as well as its refined execution
strongly suggest that the clock was made to be actually tested on board of a
ship rather than merely as an experimental construction to test the accuracy of
the new invention on Thuret's workbench or Huygens' desk. This leads immediately
to the intriguing question on whose initiative we owe the clock. There are three
possibilities: (1) the clock was ordered by Christiaan Huygens, (2) by someone
else, or (3) Isaac Thuret himself took the initiative.
In my opinion, we may consider the second possibility as
rather unlikely. The complicated verification of the clock's reliability in an
actual situation could not be trusted to a ship captain but should be carried
out under the direct supervision of a scientist familiar with timekeepers and
their problems. There are no indications that someone else than Huygens might
have been involved.
As the later history has confirmed, the initiative of
improving the accuracy of clocks and testing their performance was either in the
hands of scientists or of clockmakers as John Harrison (1693-1776) and John
Arnold (1736-1799) in England and Pierre Le Roy (1717-1785) and Ferdinand
Berthoud (1727-1807) in France.59 Hence, it is not unlikely that, if
not ordered by Huygens, Thuret himself decided to make a large version of a
watch after the new invention, provided with the extra transmission between
balance and verge escapement recommended by Huygens but probably never applied
in pocket watches. However, this does not solve the problem of a qualified
person to test the clock. Therefore, if the clock was made by Thuret on his own
initiative, we may expect that Huygens knew about it.
Although there is no direct evidence, we should not exclude
that, indeed, Huygens not only knew about the clock but had ordered it. As has
been referred to above, he considered in 1679 a clock provided with a large-size
balance a more succesful candidate for finding longitude than with a pendulum
and, three years later, this optimistic view appeared to be supported by actual
tests carried out by him. Hence, it is quite reasonable that he asked Thuret to
construct such a large-scale version. Without doubt, Huygens considered Thuret
to be the most able man for the job and, as we have also seen, he had declared
to have no difficulties to employ Thuret after the latter's written apology.
There are, in my opinion, a few indirect indications in
favour of the view that Huygens was involved in the construction of the clock.
Firstly, we saw that Thuret used capital letters on the name plate attached to
the escapement as he also did for the signature on the clock owned by Huygens
himself, but not in other preserved Thuret clocks. Secondly, there is the
ball-and-socket suspension, also used earlier by Huygens. Thirdly, still after
his return to the Netherlands (1681) he preferred balance springs in the first
version of two sea clocks constructed for him by the very able Hague clockmaker
Johannes van Ceulen; however, in view of their temperature sensitivity, he
abandoned them soon in favour of new pendulum constructions.60
7.
The clock's significance in the light of later developments
We cannot properly evaluate Huygen's idea of the
spring-and-balance construction in general, and its execution by Thuret in the
clock described above in particular, without considering these achievements in
the light of the later development of the marine chronometer in the eighteenth
century. As was mentioned, Huygens believed his new invention to represent the
most promising direction to solve the problem of measuring longitudes at sea. It
seems justified to conclude that he saw mechanical problems as the major reason
why, at that moment, the spring balance could not compete with the pendulum. In
agreement with his general style of working, he will have considered these
problems as primarily a challenge for clockmakers rather than for scientists.
The developments in the 18th century have demonstrated that this was true.
Although Isaac Newton (1642-1727), the most distinguished scientist of his age,
was convinced of the contrary,61 the problem was solved, indeed, by
clockmakers. As this history has been described extensively before,59
I restrict myself here to a few most essential aspects.
In England, the clockmaker John Harrison developed several
instruments before ending up with his famous large watch known as H.4,
successfully tested at sea in the winter of 1761-2. This watch was provided with
an improved verge escapement, with the effective length of the spiral spring
automatically controlled by a bimetal strip to minimize temperature effects.
Although Harrison fully realized that 'the less the wheels have to do with the
balance, the better',62 he needed a (most ingenious) remontoire and a
going barrel with fusee, both absent in Thuret's clock, in order to equalize the
driving force as much as possible.
Harrison's remark just quoted touches the essence of the
chronometer problem. The combination of balance wheel and spiral spring is an
oscillator functioning optimally if free from any coupling. The problem of its
unavoidable energy losses has to be solved by a device supplying periodically
small packets of energy. The verge escapement is such a device but, because the
teeth of the crown (escape) wheel are constantly pressing against the pallets
attached to the spindle of the balance wheel, there is a rather strong coupling
with the driving force, most fatal for its accuracy. Harrison's attempt to
reduce this coupling by modifying the pallets was not sufficient to eliminate
fully the coupling problem. In his spring-driven clock, he tried to reduce the
coupling effect with a combination of a remontoire and a fusee.
It is now generally recognized that the French clockmaker
Pierre Le Roy reached the most successful solution by using a large balance
wheel (to which a device for reducing temperature effects was attached) and a
detached escapement by which the coupling with the driving train was greatly
minimized. This escapement proved to be so effective that he needed neither a
remontoire nor a fusee to obtain the required accurracy as tests on ships in
1768 and later have confirmed. The superiority of this solution to the one by
Harrison has been recognized most eloquently by R.T Gould who restored the H.4
timekeeper.63
Le Roy's clock is the instrument on which the subsequent
improvements of the mechanical chronometer can be considered to be based. If we
compare the chronometers made by Harrison and Le Roy with the clock constructed
by Isaac Thuret according to Huygen's invention, the conclusion is clear.
Essentially, Le Roy's solution is a highly improved version of the Thuret clock
with the escapement almost free from the driving train and the balance
adequately compensated for temperature effects. These refinements may seem
simple, but their development took almost a century.
In conclusion, this historical perspective may have shown
that much had to be done by clockmakers rather than scientists before the
promising prototype as a result of Huygen's ingenious invention and Thuret's
superior workmanship was transformed into a chronometer suffciently accurate for
measuring longitudes at sea. Giving up the pirouette was the easiest step,
already done by the watchmakers, followed by freeing the balance from
temperature effects and the escapement from coupling. Along this route neither
the remontoire nor the fusee had to be reintroduced. The clock resulting from
the cooperation of Huygens and Thuret did not represent a blind alley but was
the beginning of a promising development. We may be happy that, whereas all
earlier and later pendulum clocks designed by Huygens to solve the problem of
measuring longitude at sea have vanished, this balance clock has been preserved.
Postscriptum
As the list of notes shows, nearly all information in this
article has been taken from Christiaan Huygens' correspondence and the extensive
notes added by the editors of his Œuvres Complètes. As more recent
research and/or discoveries may have yielded results throwing new light on the
collaboration of Huygens and Thuret on clocks in general and on marine clocks in
particular, the author will highly appreciate to be informed.
Type
' Ctr+F ' to find any word or number on this page
Notes:
1
Constantijn Huygens (1596-1687) was the very gifted
and much-travelled secretary of Prince William of Orange.
2
Letter dated 23 November, 1661; Œuvres Complètes
de Christiaan Huygens publiées par la Société Hollandaise des Sciences,
22 vols (The Hague, 1888-1950), III, 389.
3
See for a survey of early pendulum clocks made in The
Hague and brought to Paris, derived from Huygens' correspondence: R. Plomp,
'The Dutch origin of the French pendulum clock', Antiquarian Horology,
8 (1972), 24-41. Further information on the development of early French and
Dutch pendulum clocks, and their strong relations, in: R. Plomp, 'Dutch
influences in French clockmaking and vice-versa in the latter half of the
seventeenth century', Antiquarian Horology, 9 (1974), 28-45; R.
Plomp, Spring-Driven Dutch Pendulum Clocks, 1657-1710 (Schiedam,
1979).
4
J.-D. Augarde, Les Ouvriers du Temps - La Pendule
à Paris de Louis XIV à Napoléon Ier / Ornamental Clocks and
Clockmakers in Eighteenth Century Paris (Génève, 1996). This book
contains a wealth of historical information about early Parish pendulum
clock makers not known before.
5
Œuvres Complètes, IV, 110.
6
Salomon Coster was the Hague clockmaker who made the
first pendulum clocks as invented by Christiaan Huygens in December, 1656.
After his death three years later, Huygens used the clockmakers Severijn
Oosterwijck and Claude Pascal; see note 3.
7
Œuvres Complètes, V, 18.
8
Letters dated 28 March and 25 April 1664; Œuvres
Complètes, V, 51 and 57.
9
Letter dated 26 April 1664; Œuvres Complètes,
V, 59.
10
See also his letter dated 16 May 1664; Œuvres
Complètes, V, 65.
11
Pierre Petit (1598-1677) was an engineer, councillor
and geographer to the king, general intendant of fortifications, who loved
to invent and construct new machines.
12
Letter dated 17 October 1664; Œuvres Complètes,
V, 124.
13
A device to rewind the clock automatically at short
intervals.
14
Letter of Christiaan Huygens to his father, dated 19
February 1665; Œuvres Complètes, V, 240. Christiaan comments in this
letter that a similar device had been made earlier by Salomon Coster and
Claude Pascal, most probably on his instruction.
15
In a letter dated 12 January 1657 to Frans van
Schooten, professor of mathematics at Leiden University, Huygens had
written: 'I have just in these days invented a new construction for a clock
which measures time so accurately that there is no little hope of being able
by its operation to determine longitudes at sea.' Œuvres Complètes,
II, 5.
16
Œuvres Complètes, XVIII, 7. The text of the request seems to have been
written by Constantijn Huygens himself, see page 20.
17
Jean Chapelain (1595-1677), one of the main Paris
correspondents of Huygens, was councillor of Louis XIV, a mediocre poet but
an enthousiastic amateur in the sciences.
18
Œuvres Complètes, V, 267.
19
Letter of Christiaan Huygens to his father, dated 26
March 1665; Œuvres Complètes, V, 276.
20
Letters dated 24 April and 7 June 1665; Œuvres
Complètes, V, 341 and 370.
21
One clock was for Henri Louis Habert de Monmor, the
other for Pierre de Carcavi; see Œuvres Complètes, V, 474-476.
22
Letter dated 23 October 1665; Œuvres Complètes,
V, 511.
23
The astronomer Ismael Boulliau (1605-94) mentions
Christiaan Huygens 'omnium caput' of the Académie Royale des Sciences, see
Œuvres Complètes, XVIII, 4.
24
Letter dated 6 January 1668; Œuvres Complètes,
VI, 171.
25
See for a description of these remontoires Œuvres
Complètes, XVII, 178-182, based on a drawing by Huygens himself.
26
Letter dated 30 March 1669 to Sir Robert Moray
(?-1673), who had been the first president of the Royal Society in 1660-2,
one of the main correspondents of Huygens in London; Œuvres Complètes,
VI, 396.
27
Letter dated 29 May 1669 to Henry Oldenburg
(1626-78), secretary of the Royal Society and another main correspondent of
Huygens in London; Œuvres Complètes, VI, 440.
28
Œuvres Complètes, XVIII, 18-19.
29
Letter to Henry Oldenburg dated 13 February 1672;
Œuvres Complètes, VII, 142.
30
Œuvres Complètes, XVIII, 71.
31
Shown in Œuvres Complètes, XVIII, 18.
32
This clock was discovered recently. The movement
shows clearly that it is not from a Paris clockmaker. Most probably, the
clock was made in Copenhagen according to a French model by Thuret after
Rømer's return in 1671 from his ten-years stay at the Paris observatory. It
is known that the French astronomer Jean Picard (?-1682-3), who was sent by
King Louis XIV to Tycho Brahe in Copenhagen in the same year, brought with
him two astronomical clocks, one with a one-second, the other with a
half-second pendulum; both were most likely made by the conservatory's
clockmaker Thuret (destroyed by the fire in 1728). See Œuvres Complètes,
XVIII, 18, in which Picard's 'Voyage d'Uranibourg' is quoted, published in
the Mémoires de l'Académie Royale des Sciences depuis 1666 jusqu'à 1699,
II, part 1 (Paris, 1729).
33
Œuvres Complètes, XVIII, 505, note 9, quoting from the Comptes des
Bâtiments du Roi, sous le règne de Louis XIV (1664-1687), published by
J. Guiffrey (Paris, 1881). This source also mentions a planetarium in 1680,
a 'machine for measuring the eclipses' in 1682 and a 'parallax machine for
observations' in 1687, all made by Thuret.
34
See Œuvres Complètes, VII, 117, note 12. The
source is his 'Observations astronomique et physique faites en l'isle de
Caïenne' published in the Mémoires de l'Académie Royale des Sciences
depuis 1666 jusqu'à 1699, II, part 1 (Paris, 1729).
35
Robert Hooke (1635-1703) was Curator of Experiments
to the Royal Society and succeeded Oldenburg in 1677 as its Secretary.
36
Letter dated 1 August 1665; Œuvres Complètes,
V, 427.
37
Letter dated 18 September 18 1665; Œuvres
Complètes, V, 486.
38
Œuvres Complètes, XXII, 535.
39
Letter dated 24 December 1665; Œuvres Complètes,
V, 549.
40
See Œuvres Complètes, XVIII, 481-498.
41
Œuvres Complètes, XVIII, 497, Figure 16.
42
Œuvres Complètes, VII, 408-416.
43
I agree with Leopold that, since we have only
Huygens' version of this controversy, Thuret's contribution probably may
have been larger than suggested; J.H. Leopold, 'Christiaan Huygens and his
instrument makers', in: Studies on Christiaan Huygens, edited by
H.J.M. Bos et al. (Lisse, 1980), 228.
44
Œuvres Complètes, VII, 498.
45
Œuvres Complètes, VII, 419.
46
Œuvres Complètes, VII, 425.
47
Letters dated 15 and 24 May 1975; Œuvres Complètes,
VII, 462 and 464.
48
Letter dated 7 October 1675; Œuvres Complètes,
VII, 509.
49
Letter dated 12 October 1675; Œuvres Complètes,
VII, 510.
50
Robert Hooke himself wrote in his diary: 'Zulichems
[= Huygens] spring not worth a farthing' (February 20, 1675, Old Style);
Diary of Robert Hooke, edited by H.W. Robinson and W. Adams (London,
1935), 148. See for a quite different application of the balance spring by
Hooke page 151.
51
Letter dated 9 February 1675; Œuvres Complètes,
VII, 405.
52
Œuvres Complètes, VII, 542.
53
Œuvres Complètes, VII, 477.
54
Letter dated 10 August 1675; Œuvres Complètes,
VII, 489.
55
Letter to H. Justel dated 1 May 1675; Œuvres
Complètes, VII, 456.
56
Dated 15 August 1679; Œuvres Complètes, VIII,
197.
57
Letter to J. Gallois dated 1 October 1682; Œuvres
Complètes, VIII, 394.
58
Œuvres Complètes, XVII, 167 and XVIII, 114-117; see for the cooperation
with Alexander Bruce (?-1681) in the tests of 1662-4 J.H. Leopold (note 60).
59
The classical source for the history of this
development is: R.T. Gould, Marine Chronometer - Its History and
Development, (London, 1923 and reprinted in later years). An excellent
recent survey with a wider scope is The Quest for Longitude, edited
by W.J.H. Andrewes, (Cambridge, Mass., 1996).
60
Œuvres Complètes, XVIII, 527. See J.H. Leopold, 'The longitude
timekeepers of Christiaan Huygens' in W.J.H. Andrewes (note 59), 102-114.
61
See W.J.H. Andrewes, 'Even Newton Could Be Wrong: The
Story of Harrison's First Three Sea Clocks, in W.J.H. Andrewes (note 59),
190-191.
62
Quoted in R.T. Gould (note 59), 1960 edition, 51 and
83.
63
'If we contrast this marvellous machine [Le Roy's
watch] with No. 4, which, in its own way, is equally wonderful, Le Roy's
superiority as a horologist is evident. Harrison took the escapement,
balance, and general arrangement of the ordinary watch of his day, and by
fitting a remontoire and maintainer, an automatic regulator, and diamond
pallets, aided by high-numbered wheels and pinions and lavish jewelling, he
compelled it to become an efficient timekeeper. Le Roy attacked the problem
from an entirely different standpoint, and obtained his results not by
nullifying defects, but by eliminating them. The difference in their
machines is fundamental - Harrison built a wonderful house on the sand; but
Le Roy dug down to the rock.'; in R.T. Gould (note 59), 1960 edition, 90-91.
|
